How to design spherical grid structures to achieve high safety and reliability

Spherical grid structure is a new type of structural system, which has the characteristics of lightweight, high strength, and energy efficiency, and is therefore widely used in the field of construction. Designing a spherical grid with high safety and reliability requires consideration from multiple aspects, such as structural stability, material selection, and node connections.

Firstly, structural stability is an important factor in designing spherical grid structures. Due to the high degree of freedom of spherical grid structures, their stability is often more complex than traditional structures. In the design process, a comprehensive structural stability analysis is required, including simulating the structure using finite element methods, considering the effects of loads, temperature changes, and earthquakes on the structure. Meanwhile, in the design of spherical grid structures, attention should be paid to avoiding excessive structural optimization and weakening, in order to avoid risks from the perspective of safety and reliability.

Secondly, material selection is another important factor in designing spherical grid structures. In the process of material selection, factors such as structural strength, hardness, elastic modulus, and corrosion resistance should be considered. Normally, the main materials used for spherical grid structures are steel, aluminum, or fiberglass. In the process of material selection, comprehensive comparative analysis should be conducted and materials with better cost-effectiveness should be selected to achieve higher safety and reliability requirements.

Finally, in terms of node connection, reliable connection techniques need to be adopted to ensure the high reliability and security of the structure. Generally speaking, the main connection techniques used in spherical grid structures include bolted connections and welded connections. When selecting node connection technology, HBKConstruction should be comprehensively evaluated from multiple aspects, including connection strength, connection stiffness, and connection area.

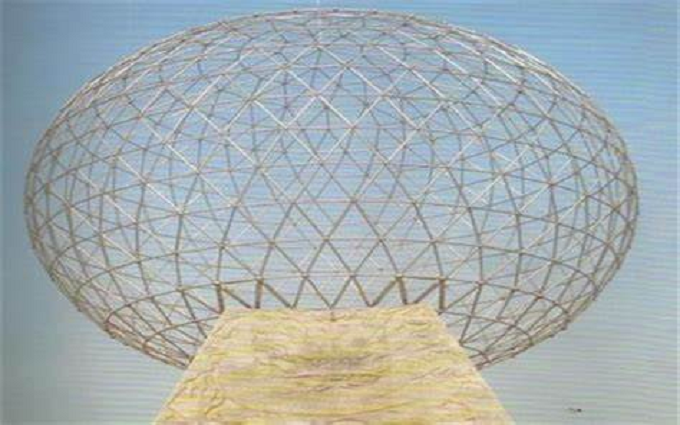

Spherical truss

Spherical truss is a special type of building structure, usually composed of steel or aluminum, to bear the weight and wind loads of the building. In addition to these traditional materials, there are other options for making spherical grid structures.

Carbon fiber

Carbon fiber is a lightweight and high-strength material commonly used in the manufacturing of aircraft, cars, and sports equipment. Carbon fiber spherical grid has high strength and excellent corrosion resistance, but its price is relatively high.

Fiberglass

Fiberglass is a lightweight and high-strength material commonly used in the manufacture of shells for ships, airplanes, and automobiles. Fiberglass spherical grid structures have excellent wear resistance and corrosion resistance, but due to their fragility and low seismic resistance, they are usually not suitable for high-strength building structures.

Aluminum plate

Aluminum plate is a lightweight, corrosion-resistant, and easy to process material. Aluminum spherical grid structures have high strength and excellent corrosion resistance, and can be processed and manufactured in various shapes as needed, making them more suitable for making small and medium-sized spherical grid structures.

Stainless steel

Stainless steel has extremely high strength and excellent corrosion resistance, and is commonly used to manufacture high-strength and high demand building structures, such as bridges and high-rise buildings. Stainless steel spherical grid has extremely high strength and corrosion resistance, and can be suitable for various environments.

Polyurethane foam

Polyurethane foam is a lightweight, high-strength material that also has excellent thermal insulation and flame retardant properties. Due to the fact that polyurethane foam can be injection molded according to the external shape, various shapes and sizes of spherical grids can be manufactured.

In summary, different materials have different characteristics and applicability, and architectural designers and engineers should choose suitable materials to manufacture spherical grid structures based on actual needs.
